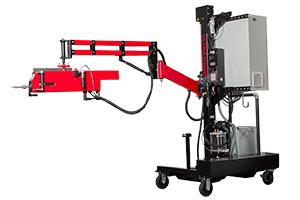

Ultra Hawk
Parallel & Traditional Tube Rolling System
Ultra Hawk Specifications
Tube OD Range
5/8″ to 1-1/2″
(15.9 to 38.1mm)
Horizontal Reach Radius
5.5′
(1.68 m)
Vertical Reach
(min – max)
(min – max)
2″ to 8″
(610mm to 2.44m)
Working Area/Footprint
79″ to 119″ (2.01m to 3.02m) height
43″ (1.09m) width
34″ to 95″ (864mm to 2.41m) depth
Unit Weight
EPS230: 1,086 lbs (492.6 Kg)
EPS460: 1,269 lbs (575.6 Kg)
Pneumatic Requirements
1.5 CFM
100 PSI
Power Requirements
EPS230: 230 V, 3 Phase, 60 Hz
EPS460: 460 V, 3 Phase, 60 Hz
Max Torque
3.5 to 50 ft lbs.
Ultra Hawk Packages
| Ultra Hawk Pacakge | Voltage |
|---|---|
| EPS230 | 230V |
| EPS460 | 460V |
Each Ultra Hawk Package Includes:
- Ultra Hawk
- Parallel Pin & Traditional Rolling Capability
- Through The Cage Auto-Lubrication
- Servo Motor Driven Power Head
- Swivel Mount System
*Other voltage configurations available upon request
