In most heat exchanger fabrication, new construction consists primarily of a tube expanded directly into a tube sheet. Nuclear applications — specifically steam generators — go a step further. New builds in these settings commonly incorporate a sleeve that is expanded into both the tube and the tube sheet, adding an additional layer of safety, durability, and corrosion management. This extra assembly step reflects the higher performance and safety standards that nuclear environments demand.

Sleeves run the full length of the tube, and at the tube end, a small semicircular cutout is machined into the sleeve. This feature allows an expander collar to seat into the notch, locking the two together, to prevent the sleeve from spinning during the initial expansion.

Surrounding the tube and sleeve assembly is the housing or tube sheet, which the sleeve and tube are ultimately expanded into. Typically, the front end of the tube and sleeve is expanded, as is the section along the back of the housing or tube sheet, leaving the middle section of the sleeve partially unexpanded.

Sleeves run the full length of the tube, and at the tube end, a machinist cuts a small semicircular notch into the sleeve. This feature allows an expander collar to seat into the notch, locking the two together, to prevent the sleeve from spinning during the initial expansion.

Surrounding the tube and sleeve assembly is the housing or tube sheet, which the which the operator expands the sleeve and tube into. Typically, the front end of the tube and sleeve is expanded, as is the section along the back of the housing or tube sheet, leaving the middle section of the sleeve partially unexpanded.

New construction typically offers the most straightforward installation conditions, since there are no space limitations.

However, field maintenance is a different story. These are vertical exchangers, and all work must be performed from the bottom of the vessel. That means operators are reaching up through the full length of the unit to access the farthest tube sheet — a significant logistical challenge. Tooling must be designed not just for the expansion task itself, but for the reach required to work through a vertical vessel.

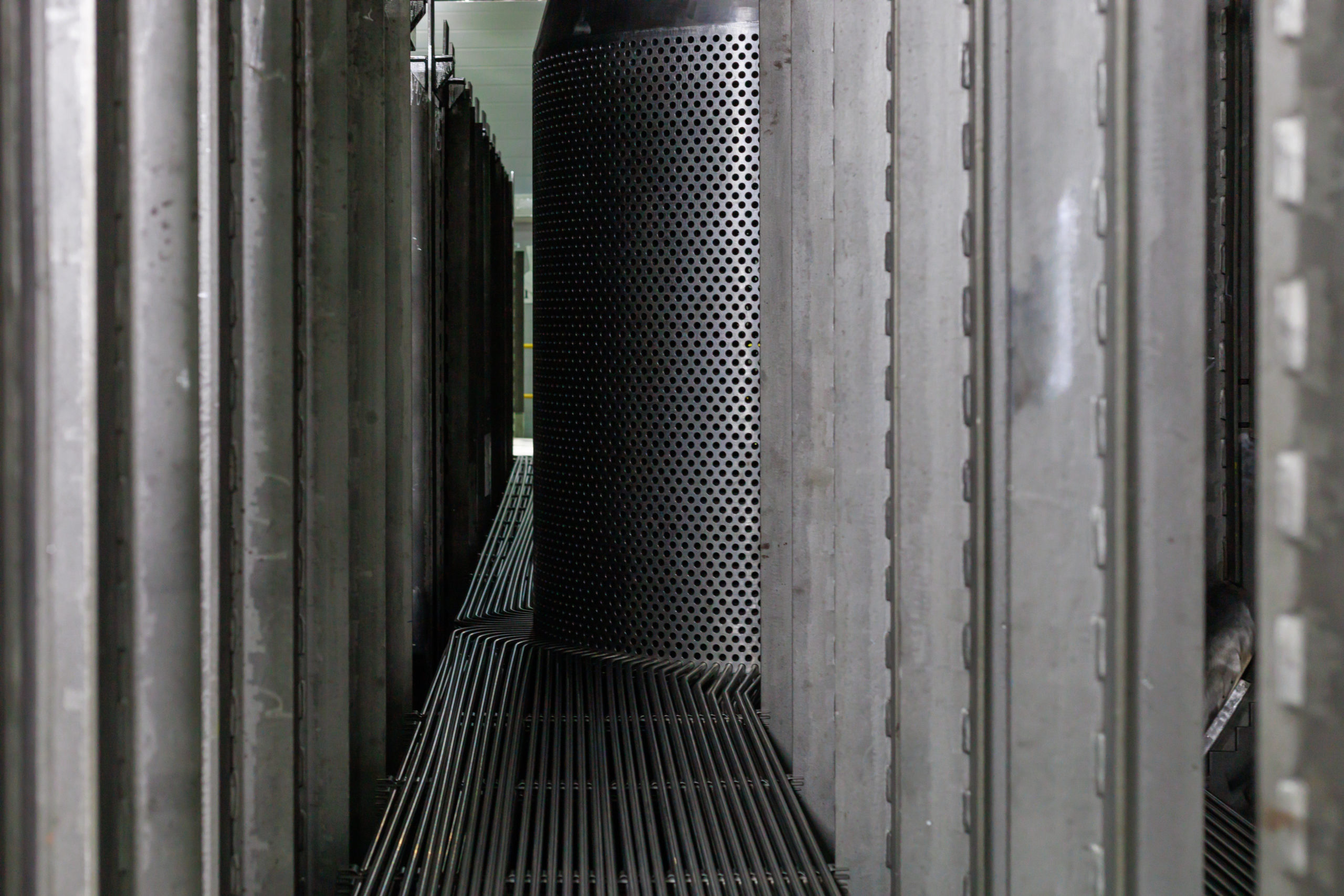

The tubes and sleeves used in nuclear applications are typically 5 inches in diameter and above, and they’re fabricated from specialty materials such as Zirconium or exotic grades of stainless steel. These materials are selected specifically for their higher yield strength and superior corrosion resistance.

These same properties, however, make expansion more demanding. Higher yield strength means more force is required to achieve proper mechanical contact between the sleeve and tube. When you add in the potential for a large gap between the tube and sleeve walls, the challenge compounds. A thick or heavy-wall tube combined with a significant gap can make it considerably harder to achieve a reliable mechanical joint. Accounting for this gap at the design stage — not after the expander is already on site — is critical.

Given the material properties, tube geometry, and access constraints involved, expander selection for nuclear sleeve applications is not a standard catalog item. Understanding several variables in detail is essential before designing the right tool.

• Outer diameter and wall thickness of both the tube and the sleeve
• The gap between the two, which directly affects how much material must be moved
• Required expansion length at each end of the sleeve
• Material grades for the tube, sleeve, and tube sheet
• Required wall reduction, which defines the mechanical target for the expansion

These factors together determine not just the expander geometry, but the motor that needs to drive it. The torque demands in these applications can be substantial. At 400 ft-lbs and above, torque-controlled motors may not be an option, as those higher ranges are largely covered by stall-torque motors. If the job requires a rigid mount or gear motor configuration, this must be communicated upfront. The total runout tolerances for machining these tools are tight, and a special manufacturing run may be required. Identifying this late in the process doesn’t just cause delays — it adds cost that could have been avoided with earlier planning.

Nuclear sleeve expansion doesn’t leave much room for improvisation. The materials are expensive, the stakes are high, and the access constraints mean that mistakes are hard to correct in the field. The most effective approach is a thorough planning discussion that covers every variable: tube and sleeve dimensions, material specifications, expansion targets, motor requirements, and mounting configurations.

When all of that information is on the table from the start, the right tool can be designed, the right motor can be specified, and the crew in the field has everything they need to execute the job with confidence.
