RECON 1500 Series Specifications
Tube ID Range
0.280″ to 2.456″
(7.1 to 62.4mm)
Air Requirements
Minimum: 40 PSI (2.7 bar)
Maximum: 130 PSI (8.9bar)
Test Gun Kits
| Tube ID Range | Tube Leak Test Gun Kit | Seal & Washer Set |
|---|---|---|
| 0.280″ – 0.690″ (7.1 – 17.5mm) |
TTV1500 | TTVS1 |
| 0.640″ – 1.450″ (16.2 – 36.8mm) |
TTV1500 | TTVS2 |
| 1.490″ – 2.456″ (37.8 – 62.4mm) |
TTV1500 | TTVS3 |
RECON 1500 Kit:

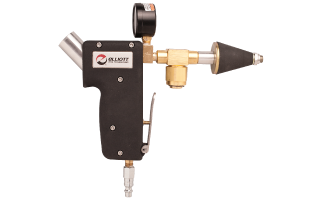

- Tube Leak Test Gun
- T-Handle Plugging Tool
- 2 Seal & Washer Sets (TTVS1, TTVS2)
- Tool Case
Support Tube Extensions
| Tube ID Range | 12″ (305mm) |
24″ (610mm) |
36″ (914mm) |
48″ (1,219mm) |
|---|---|---|---|---|
| 0.280″ – 0.690″ (7.1 – 17.5mm) |
TTVST1-12 | TTVST1-24 | TTVST1-36 | TTVST1-48 |
| 0.640″ – 1.450″ (16.2 – 36.8mm) |
TTVST2-12 | TTVST2-24 | TTVST2-36 | TTVST2-48 |
Spares & Accessories
Seal & Washer Sets:
TTVST3 and TTVS3 are available to accommodate larger tube sizes. TTVST3 includes a seal and washer set for the Support Tube and T-Handle Plugging Tool.
Support Tube Extensions:
Make finding leaks easier on channel head and water box applications. Available in lengths of 12″, 24″, 36″, and 48″. Support Tubes are backward-compatible.
