Super Collet Tube Puller

Collet Puller Specifications

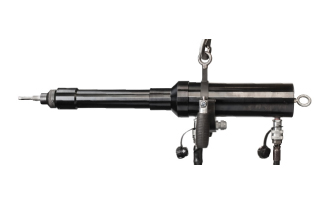

Collet Style Tube Puller

Hole Size



1/2″ – 2-1/2″
(12.7 – 63.5mm)



Puller Requirements

CPS15
15 Ton @ 10,000 PSI



CPS25
25 Ton @ 10,000 PSI



Stroke



Stroke: 6.75″
Pulling Stroke: 6.00″

Package Includes

Pulling Head
Two Hydraulic Hoses

Spares & Accessories

Collet
Draw Bar
Tie Rod
Nose Piece
Deflector Shield

Tube OD BWG Expansion Range Collet Draw Bar Tie Rod Nose Piece
1/2″
(12.7mm)
14-15
16-18
19-22
0.326″ – 0.418″ (8.28 – 10.62mm)
0.362″ – 0.454″ (9.19 – 11.53mm)
0.408″ – 0.500″ (10.36 – 12.7mm)
CPC500-14
CPC500-16
CPC500-19
CPD500 CPT500 CPN500
5/8″
(15.9mm)
14-15
16-18
19-22
0.451″ – 0.543″ (11.46 – 13.80mm)
0.487″ – 0.579″ (12.37 – 14.71mm)
0.533″ – 0.625″ (13.54 – 15.88mm)
CPC625-14
CPC625-16
CPC625-19
CPD625 CPT625 CPN625
3/4″
(19.05mm)
12-13
14-15
16-18
19-22
0.530″ – 0.622″ (13.46 – 15.80mm)
0.576″ – 0.668″ (14.63 – 16.97mm)
0.612″ – 0.704″ (15.54 – 17.88mm)
0.658″ – 0.750″ (16.71 – 18.97mm)
CPC750-12
CPC750-14
CPC750-16
CPC750-19
CPD750 CPT750 CPN750
7/8″
(22.2mm)
12-13
14-15
16-18
19-22
0.655″ – 0.747″ (16.71 – 19.05mm)
0.701″ – 0.793″ (17.81 – 20.14mm)
0.737″ – 0.829″ (18.72 – 21.06mm)
0.783″ – 0.875″ (19.89 – 22.23mm)
CPC875-12
CPC875-14
CPC875-16
CPC875-19
CPD875 CPT875 CPN875
1″
(25.4mm)
10-11
12-13
14-15
16-18
19-22
0.730″ – 0.822″ (18.54 – 20.88mm)
0.780 – 0.872 (19.81 – 22.15mm)
0.826″ – 0.918″ (20.98 – 23.32mm)
0.862″ – 0.954″ (21.90 – 24.23mm)
0.908″ – 1.000″ (23.06 – 25.40mm)
CPC1000-10
CPC1000-12
CPC1000-14
CPC1000-16
CPC1000-19
CPD1000 CPT1000 CPN1000
1-1/8″
(28.58mm)
10-11
12-13
14-15
16-18
19-22
0.855″ – 0.947″ (21.72 – 24.05mm)
0.905″ – 0.997″ (22.99 – 25.32mm)
0.951″ – 1.043″ (24.16 – 26.50mm)
0.987″ – 1.079″ (25.07 – 27.41mm)
1.033″ – 1.125″ (26.24 – 28.58mm)
CPC1125-10
CPC1125-12
CPC1125-14
CPC1125-16
CPC1125-19
CPD1125 CPT1125 CPN1125
1-1/4″
(31.8mm)
10-11
12-13
14-15
16-18
19-22
0.980″ – 1.072″ (24.89 – 27.23mm)
1.030″ – 1.122″ (26.16 – 28.50mm)
1.076″ – 1.168″ (27.33 – 29.67mm)
1.112″ – 1.204″ (28.25 – 30.58mm)
1.158″ – 1.250″ (29.41 – 31.75mm)
CPC1250-10
CPC1250-12
CPC1250-14
CPC1250-16
CPC1250-19
CPD1250 CPT1250 CPN1250
1-3/8″
(34.9mm)
10-11
12-13
14-15
16-18
19-22
1.105″ – 1.197″ (28.07 – 30.40mm)
1.155″ – 1.247″ (29.34 – 31.67mm)
1.201″ – 1.293″ (30.51 – 32.84mm)
1.237″ – 1.329″ (31.42 – 33.76mm)
1.283″ – 1.375″ (32.59 – 34.93mm)
CPC1375-10
CPC1375-12
CPC1375-14
CPC1375-16
CPC1375-19
CPD1375 CPT1375 CPN1375
1-1/2″
(38.1mm)
10-11
12-13
14-15
16-18
19-22
1.230″ – 1.322″ (31.24 – 33.58mm)
1.280″ – 1.372″ (32.51 – 34.85mm)
1.326″ – 1.418″ (33.68 – 36.02mm)
1.362″ – 1.454″ (34.60 – 36.93mm)
1.408″ – 1.500″ (35.76 – 38.10mm)
CPC1500-10
CPC1500-12
CPC1500-14
CPC1500-16
CPC1500-19
CPD1500 CPT1500 CPN1500
2″
(50.8mm)
10-11
12-13
14-15
16-18
19-22
1.730″ – 1.824″ (43.94 – 46.33mm)
1.780″ – 1.871″ (45.21 – 47.52mm)
1.826″ – 1.917″ (46.38 – 48.69mm)
1.862″ – 1.954″ (47.29 – 49.63mm)
1.908″ – 1.986″ (48.46 – 50.44mm)
CPC2000-10
CPC2000-12
CPC2000-14
CPC2000-16
CPC2000-19
CPD2000 CPT2000 CPN2000
2-1/2″
(63.5mm)
10-11
12-13
14-15
16-18
19-22
2.230″ – 2.324″ (56.64 – 59.03mm)
2.280″ – 2.371″ (57.91 – 60.22mm)
2.326″ – 2.417″ (59.08 – 61.39mm)
2.362″ – 2.454″ (59.99 – 62.33mm)
2.408″ – 2.486″ (61.16 – 63.14mm)
CPC2500-10
CPC2500-12
CPC2500-14
CPC2500-16
CPC2500-19
CPD2500 CPT2500 CPN2500
Contact us for more information or to request a quote.
