Diamond Burnishing

Precision Metal Finishing Tools

Overview      Specifications      Brochure

Diamond Burnishing Specifications

Standard Options

Tool Number Description

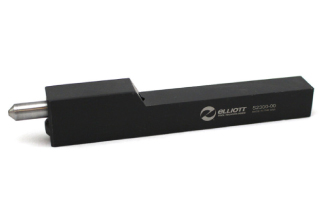

S2300-00 0.750″ square with o set tool holder
S2300-00M 20mm shank with o set tool holder
S2300A00 1.000″ square with o set tool holder
S2300A00M 25mm square with o set tool holder
S2300M00 1.000″ x 25mm “square” shank with the diamond on center
S2295-00 0.750″ square shank with boring bar arm on center

Replacement Parts

CompleteTool Diamond Stem Spring Screw
S2300-00 S375D1 S375-4-165 P8597-2N
S2300A00 S375D1 S375-4-165 P8597-2N
S2300B00 S375D1 S375-4-165 P8597-2N
S2300M00 S375D1 S375-4-165 128Y
S2295-00 S2295D1 548H
S2300-00M S375D1 S375-4-165 P8597-2N
S2300A00M S375D1 S375-4-165 P8597-2N
S2300B00M S375D1 S375-4-165 P8597-2N

Part Preparations

100-120 RMS

Feed Rate



250-500 SFM (750 Max)

Coolant Required

Water Soluble Or Oil

For more information about metal finishing tools visit monaghantooling.com.

Monaghan Tooling Group is Elliott’s exclusive marketing and sales rep for our precision metal finishing tools.
