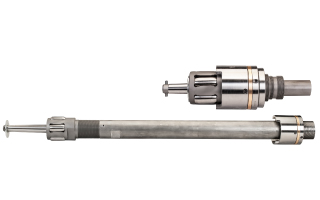

6621 Series

Sugar Mill Vacuum Pan Expanders

6621 Series Specifications

Tube OD Range

3.000″ to 4.000″ OD
(76.2 – 101.6mm)

Sugar Mill vacuum Pan Expander Package

Expander Assembly
Cage Extension
Mandrel Extension
Mandrel Guide
Square Socket
3 Set Screws

Tube Size Kit Part Number*
4″ x 13-16 6621-60-36
6621-60-48
6621-60-60
3- 1/2″ x 14-16 6621-53-36
6621-53-48
6621-53-60
3″ x 14-16 6621-44-36
6621-44-48
6621-44-60

* -36 = 30″ – 42″ Reach
-48 = 42″ – 54″ Reach
-60 = 54″ – 66″ Reach

Spares & Accessories

Extension Set Includes:

1 Cage Extension, 1 Mandrel Extension, 1 Mandrel Guide, 1 Square Socket, and 3 Set Screws.

Roll Set

Mandrel

Tube Sheet Thickness
OD BWG
Expander Assembly Roll Set
(Qty: 5)
Spare Mandrel
4″ x 13-18 6621-60 662105-60-5 662103-60
3-1/2″ x 14-16 6621-53 662105-53-5 662103-53
3″ x 14-16 6621-44 662105-44-5 662103-44
