Tube Titan
Tube Preparation System

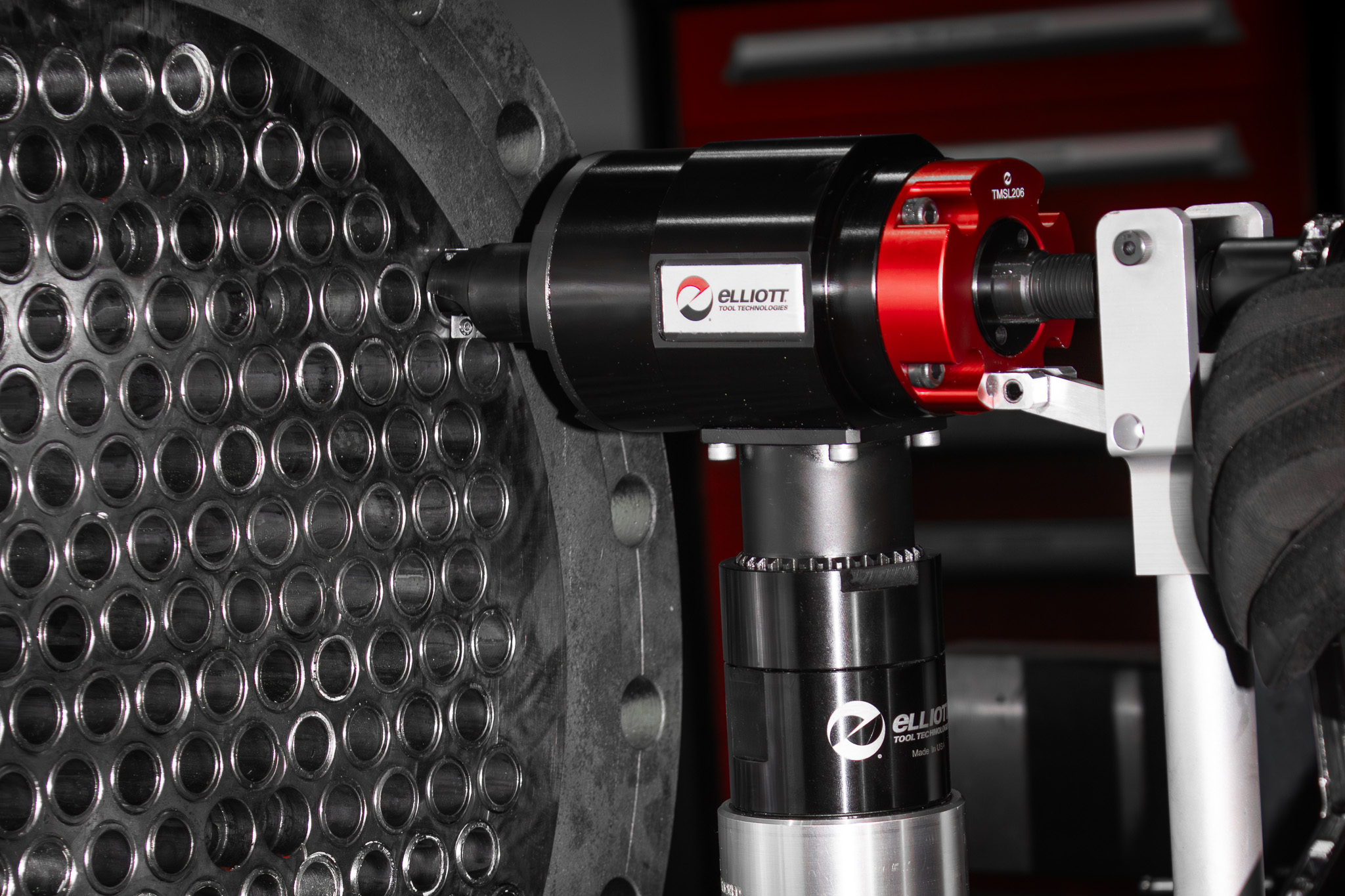

Elliott’s all-new Tube Titan – Tube Preparation System delivers fast and precise tube end preparation for ¾” – 1-1/2” tube and pipe applications.
Experience a tool with Legendary Performance, built for the ages. The rugged locking system on the Tube Tian offers extended life, and consistency. This tool is sure to increase productivity and save time for your whole team.
Ideal for tube end trimming, seal and strength weld removal, and tube sheet hole beveling, the Tube Mill delivers optimal performance in the toughest applications.
The robust locking and feed system allows for faster setup and prevents premature tool breakage, significantly reducing downtime and cost per cut. Maximize tool life on exotic materials with the standard AlCrN-coated cutting blades. This new coating provides superior heat resistance and wear protection, delivering extended service life compared to traditional TiN coating.
| Specifications | ||||
|---|---|---|---|---|
| System PN | Feed Type | Locking Type | Free Speed RPM | Air Usage |
| TMS090L | Lever | Ratchet | 90 | 55 com @ 90 PSI |
| TMS090R | Wheel | Ratchet | 90 | 55 com @ 90 PSI |
| TMS090W | Wheel | Ratchet | 90 | 55 com @ 90 PSI |
Spares & Accessories
-
Fixed Cutting Holders: Strength weld, seal weld, trimming
-
Cutting Inserts
-
Locking mechanism: Cage, Retainers, and Jaws
Locking System
| Tube ID Range | Cage & Retainer | Jaw Set |
|---|---|---|
|
0.500” – 0.635” |
TML500 |
TMJ500 |
|
0.625” – 0.760” |
TML875 |
TMJ625 |
|
0.750” – 0.885” |
TML875 |
TMJ750 |
|
0.875” – 1.010” |
TML875 |
TMJ875 |
|
1.000” – 1.135” |
TML875 |
TMJ1000 |
|
1.125” – 1.260” |
TML875 |
TMJ1125 |
|
1.250” – 1.385” |
TML875 |
TMJ1250 |
|
1.375” – 1.510” |
TML875 |
TMJ1375 |
Holders & Projection Collars
| Tube OD | Tube Facing Holder
& Projection Collar |
Strength Weld Holder |
|---|---|---|
|
3/4″ |
TFH0750-125 |
SWH-0750 |
|
7/8” |
TFH0875-125 |
SWH-0875 |
|
1” |
TFH1000-125 |
SWH-1000 |
|
1-1/8” |
TFH1125-125 |
SWH-1125 |
|
1-1/4” |
TFH1250-125 |
SWH-1250 |
|
1-1/2” |
TFH1500-125 |
SWH-1500 |
Bits
| Application | Bit Part Number | Vertical Width | Horizontal Width | Screw |
|---|---|---|---|---|
|
Tube Trimming / Facing |
TFB500-500-CB |
0.197” (5.00mm) |
0.197” (5.00mm) |
MTS-20 |
|
Tube Trimming / Facing |
TFB630-950-AlCrN |
0.248” (6.30mm) |
0.374” (9.50mm |
MTS-25 |
|
Tube Trimming / Facing |
TFB950-950-AlCrN |
0.374” (9.50mm) |
0.374” (9.50mm) |
MTS-40 |
|
Strength Weld Removal |
SWB1350-950-AlCrN |
0.531” (13.50mm) |
0.374” (9.50mm) |
MTS-40 |
Rugged Locking Mechanism
Durable design prevents premature tool breakage and wear, reducing downtime and cost.
Ease of Set-Up
This System is easy for operators to set up and use. Simply set in the tube or tube sheet hole, engage the locking system, and feed the cutting end forward.
Longer Life On Exotic Materials
Get better tool life on trimming exotic materials with AlCrN coated cutting inserts. Optimized for high-temperature applications, they provide longer life without the use of cutting oil or lubricant.
Consistent Trimming Every Time
The adjustable collar allows for consistent tube trimming every time, eliminating downtime from manual checks. Simply flip the collar, then switch between flush or 1/8” tube projection.
Faster Tooling Change-Outs
Quickly swap out holders, bits, and locking sizes with minimal screws and little to no disassembly.
Convenient Compatibility
Holders and cutting inserts are designed to be compatible with Krais for the convenient use of existing systems.
