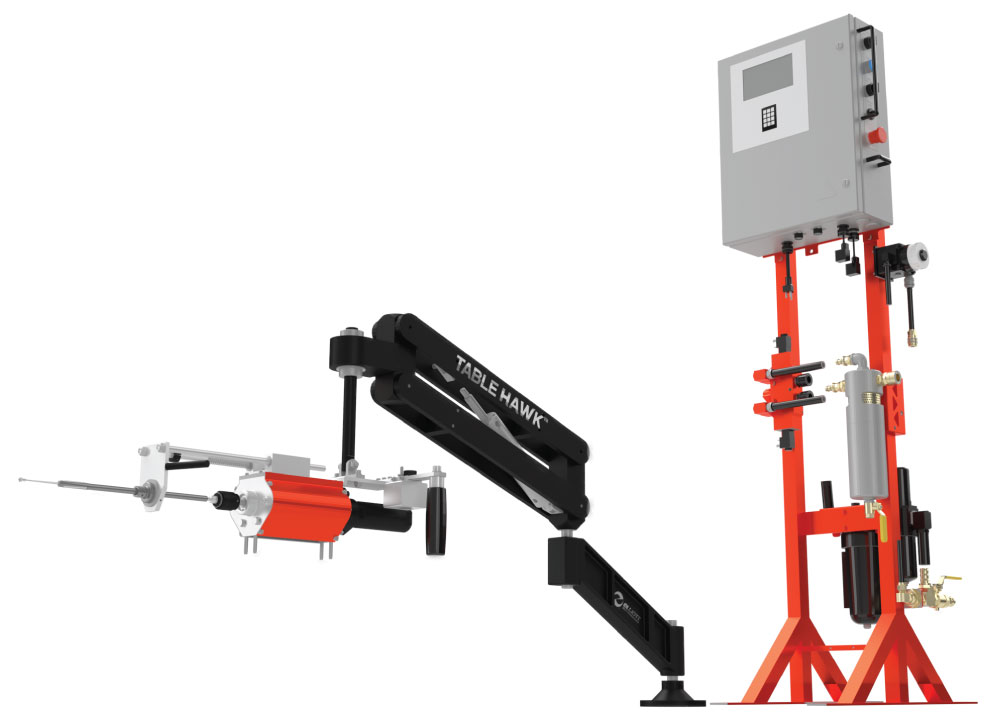

Table Hawk

Tabletop Assisted Tube Rolling System

Small Tubes, High Precision.

Engineered to productively and precisely expand small tubes commonly found in oil coolers and other small heat exchangers. Elliott’s tabletop assisted tube rolling system completes the job right the first time.

  • Direct Torque™ Electric Torque Control

  • Increased Productivity

  • Operator Friendly

  • Consistent Tube Expansion

Tabletop Assisted Tube Rolling System

Increased Productivity & Ergonomics

Offering the speed, power, and productivity of a pneumatic motor with the precision and control of an electronic system, it maximizes productivity by providing the fastest cycle times while eliminating costly rework from less precise methods.

Start, Stop, & Reverse Automatically

Auto-Cycling increases speed and precision with a Power Head that runs automatically –starting, stopping, and reversing without operator intervention.

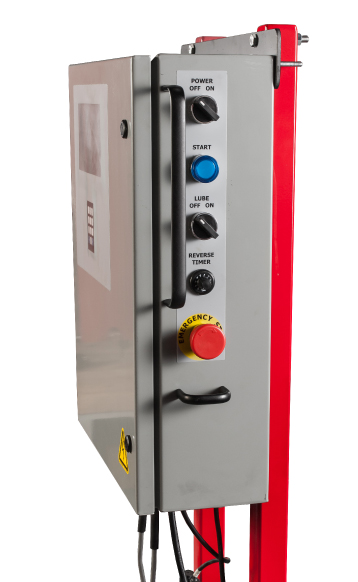

Tabletop Assisted Tube Rolling System Control Panel

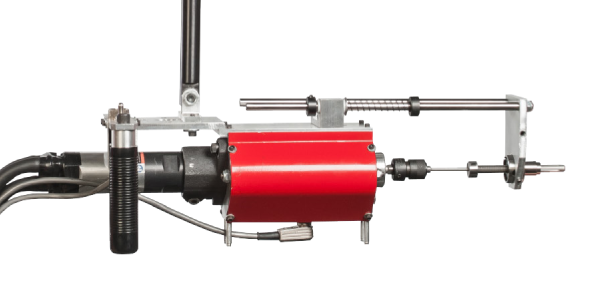

Tabletop Assisted Tube Rolling System Motor

Faster Motor, Same Precise Control

Increase speed with a pneumatic motor and roll each tube to spec with the electronic control system.

Zero Trigger Cycling

Trigger-less operation increases ergonomics with a simple on/off switch for operation.

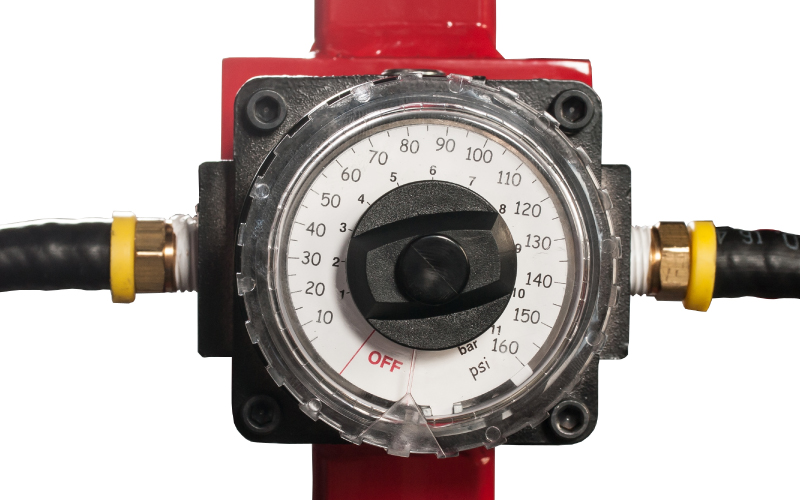

Tabletop Assisted Tube Rolling System Counter Balance

Articulated Arm

Increases operator ergonomics and decreases operator fatigue by supporting tool weight and absorbing torque.

Counterbalance

Decreases operator fatigue by allowing effortless and exact positioning of the articulated arm and rolling motor.

Change Tooling Quickly

Quickly change out Elliott’s long-lasting 24 Series Condenser Expanders with the built-in quick change chuck system.

Consistent Tube Expansion

Direct Torque™ measures the torque and controls system functions regardless of fluctuations in hydraulic oil temperatures. Allowing you to roll to the target wall reduction each time to eliminate costly re-rolling.

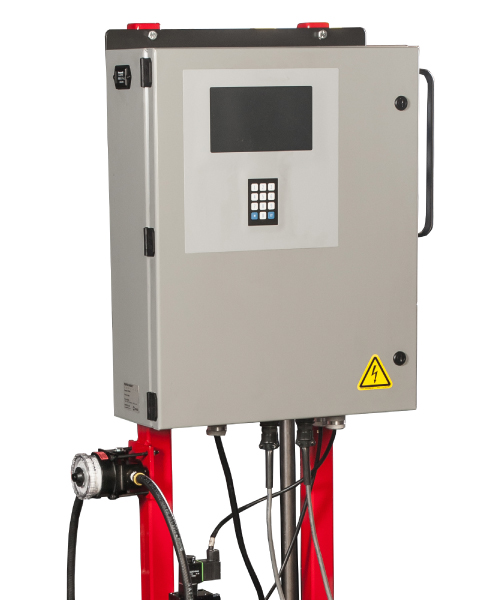

Tabletop Assisted Tube Rolling System Panel

Roll Every Tube To Spec

Direct Torque™ Electric Torque Control measures torque and controls system functions regardless of fluctuations in air supply. Allows you to roll to the target wall reduction each time to eliminate costly re-rolling.

Increase Tool Life

Swivel Mount supports the Power Head to relieve weight stress and increase expander life.

Maintain Tool Alignment

Expander holder increases tool life and ensures consistently rolled tubes with an expander holder that guides the expander and maintains tool alignment.

Quick & Easy Setup

The Table Hawk’s articulated arm supports the weight and absorbs the torque of the rolling motor using a pneumatic counterbalance, which allows the operator to effortlessly move the motor into position.

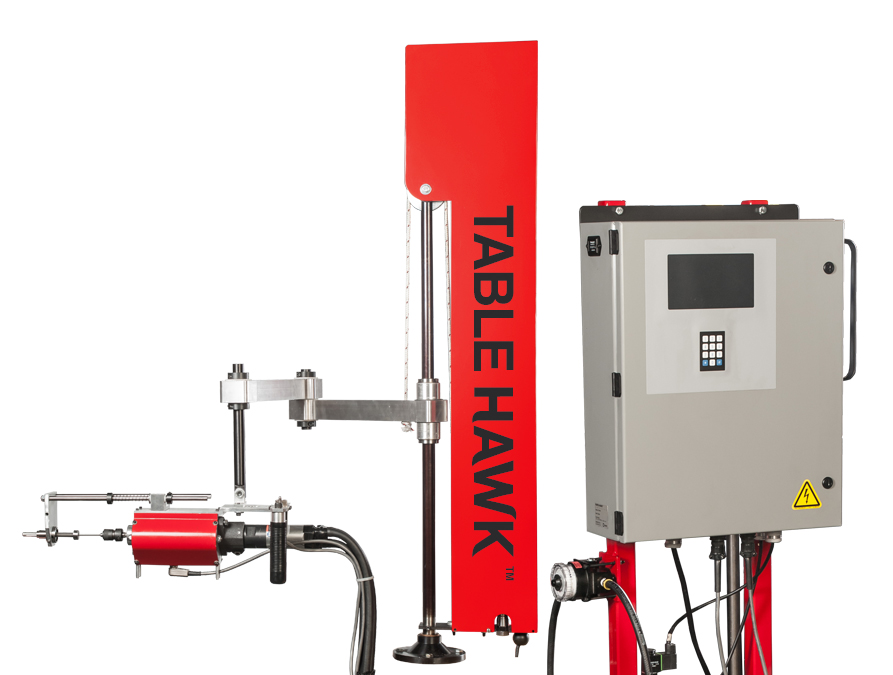

Tabletop Assisted Tube Rolling System Control Stand

Fully Assembled Articulated Arm

Minimizes setup time by arriving fully assembled. Simply mount the arm to a tabletop or cart and connect the airlines.

Operator Friendly Controls

User simply sets torque with the easy-to-use control panel.

Filter/Regulator and Lubrication

Allows for simple setup of the Table Hawk and decreases maintenance by extending the life of the air motor.

Contact us for more information or to request a quote.
