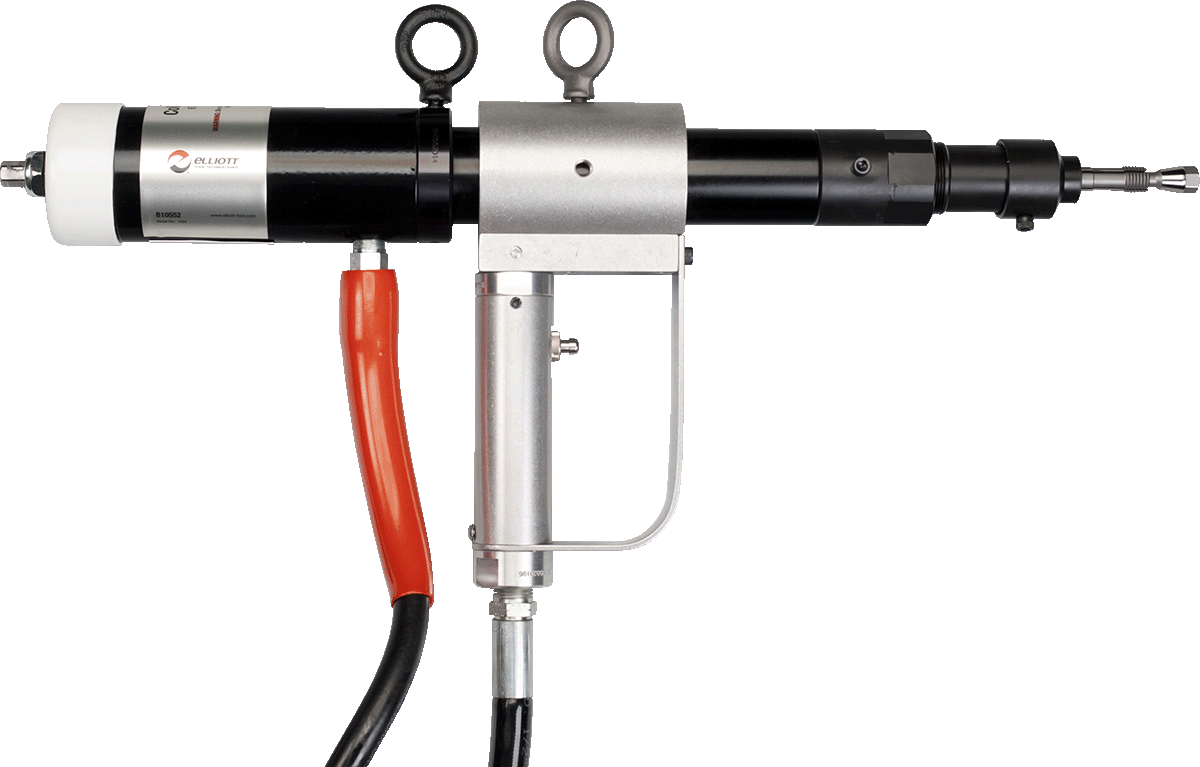

Collet Style Tube Tugger

The B10552-00 Collet Tube Puller is designed for fast and efficient tube removal in condensers, chiller, and other heat exchangers.

A Collet Style Tube Tugger Kit Includes:

B10552 Collet Style Tube Tugger Assembly
B10552D5-750 Collet Retainer for 5/8″ (15.9mm) and 3/4″ (19.1mm) ODs
B10552D7-750 Pull Rod for 5/8″ (15.9mm) and 3/4″ (19.1mm) ODs
B10552D5-1000 Collet Retainer for 7/8″ (22.2mm) and 1″ (25.4mm) ODs
B10552D7-1000 Pull Rod for 7/8″ (22.2mm) and 1″ (25.4mm) ODs
B10552D20 15ft (4.6m) Hydraulic Hose Assembly

Spares & Accessories

Item Number
110V Hydraulic Pump* M5783-00
220V Hydraulic Pump* M5783-00-220
Collet Set See Table Below
Counter Balance TCB20-33
Draw Bar See Table Below
Nose Piece See Table Below
Seal Kit 17-300576
Tool Kit See Table Below

*A hydraulic pump is required to operate the Collet Style Tube Tugger

Tube OD
Tool Kit
Collet Set
Flat Spring
Draw Bar
Nose Piece
18-20 B10552-625KIT B10552D3-625 B10552D31-62 P8309-8A B10552D2-625 B10552D4-625
16-20 B10552-750KIT B10552D3-750 B10552D31-62 P8309-8A B10552D2-750 B10552D4-750
16-20 B10552-875KIT B10552D3-875 B10552D31-87 P8309-11 B10552D2-1000 B10552D4-875
16-20 B10552-1000KIT B10552D3-1000 B10552D31-100 P8309-11 B10552D2-1000 B10552D4-1000

Get The Job Done Quickly

Designed for fast and efficient tube removal in condensers, chillers, and other heat exchangers. The Collet Style Tube Tugger can quickly & successfully pull over 100 tube stubs in less than an hour.


Quick stroke cylinder pulls tube stubs in less time.


Lightweight pulling ram reduces operator fatigue.

Lower Cost

Wide gripping range decreases tooling expense.

360 Positioning

The 360-degree positioning handle enables access to those hard to reach tubes near channel plates and water boxes.
