Elliott's 430D Jumbo Tube Buster is the recommended driving tool for Elliott's Jumbo Knockout Tools to remove tube stubs in heat exchangers, firetube boilers, and watertube boilers.

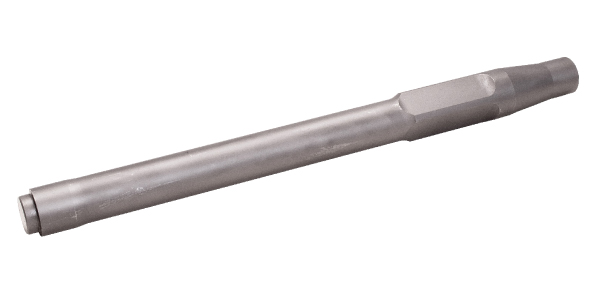

Jumbo Knockout Tools are used to punch the tubes out of the tube sheet and are available in either 8” (203.0mm) or 16” (406.0mm) reach. The tools are piloted to prevent damage to the tube sheet.
The 430D Jumbo Tube Buster uses a number 15 shank. The tool features a barrel design that captures the compression piston and the inside trigger feature permits throttle control of the tool.
Features & Benefits:
- Lightweight & compact design – easy to move in tight areas.
- Uses retainers on tools – improved operator safety.
- Used also for tube collapsing, belling, and flaring – greater productivity.
Specifications
- Piston Diameter & Stroke: 1-3/16” X 8” (30.2 X 203.2mm)
- Net Weight: 30 lbs. (13.6 Kg.)
- Air Requirement: 42 CFM @ 90 PSI
- Hose Diameter: 1/2” (12.7mm) NPT
