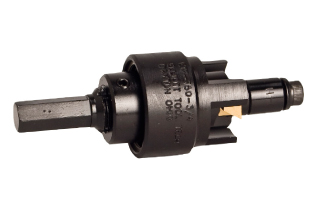

ETF Series

Tube End Facers

ETF Series Specifications

Tube OD Range

0.375″ to 1.500″
(9.5 to 38.1mm)

Spares & Accessories

Tube OD BWG Tube Facer* Tool Bits** Pilot
3/8″
(9.53mm)
16-23 ETF375 ETF376 ETF375P(ga)
1/2″
(12.70mm)
16-23 ETF500 ETF506 ETF500P(ga)
5/8″
(15.88mm)
14-23 ETF625 ETF626 ETF625P(ga)
3/4″
(19.05mm)
10-23 ETF750 ETF756 ETF750P(ga)
7/8″
(22.22mm)
10-23 ETF875 ETF876 ETF875P(ga)
1″
(25.40mm)
10-23 ETF1000 ETF1006 ETF1000P(ga)
1-1/8″
(28.58mm)
10-23 ETF1125 ETF1126 ETF1125P(ga)
1-1/4″
(31.75mm)
10-23 ETF1250 ETF1256 ETF1250P(ga)
1-3/8″
(34.93mm)
10-23 ETF1375 ETF1376 ETF1375P(ga)
1-1/2″
(38.10mm)
10-23 ETF1500 ETF1506 ETF1500P(ga)

*Specify Non-Ferrous or Stainless Steel Tool Bit when ordering.
**Add SS to the end for Stainless Steel bits.

Drive Motors

Electric Motors

Pneumatic Motors

Specifications

Model 447000

110 V, 50/60 Hz, 16 Amp
2 Speed Variable Speed Motor: 60-140RPM, 200-470 RPM
Weight: 16 lbs (7.26kg)

Model 447000-220

220 V, 50/60 Hz, 8 Amp
2 Speed Variable Speed Motor: 60-140RPM, 200-470 RPM
Weight: 16 lbs (7.26kg)

*Motors are supplied with 5/8″ Jacob’s chuck and 3/4″ Square Female Socket Adapter.

Model P5154

23CFM @ 90 PSI (6.2bar)
1/4″ NPTF- 5/16″ (8mm) ID Air Supply Hose
325 RPM
Weight: 5-1/2 lbs (2.5kg)

Model P5476C

23CFM @ 90 PSI (6.2bar)
1/4″ NPTF- 5/16″ (8mm) ID Air Supply Hose
100 RPM
Weight: 5-1/2 lbs (2.5kg)

*Motors are supplied with 1/2″ Jacob’s chuck
