Designing IRU Cutter Blades for Precision and Performance

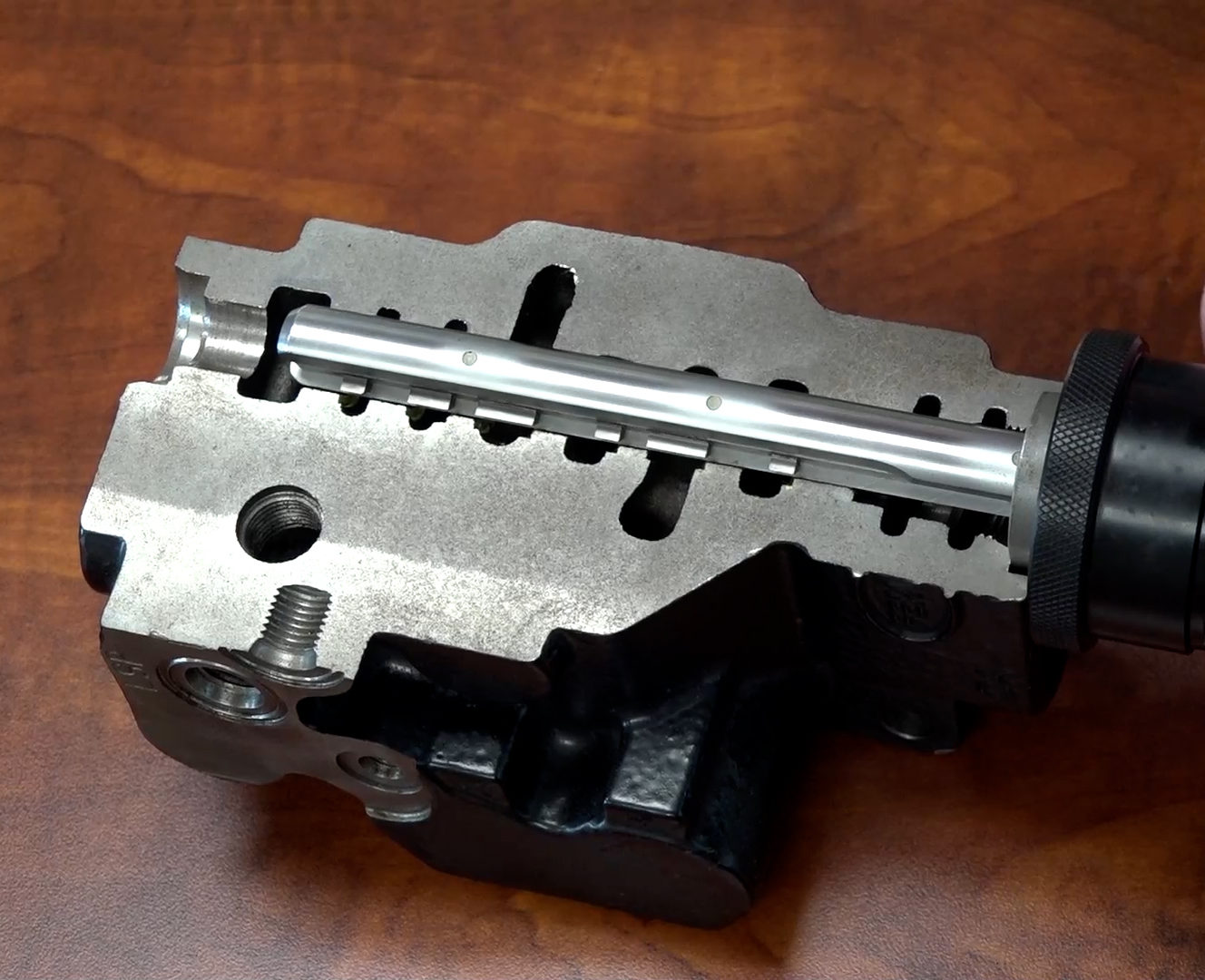

The design of an IRU cutter blade, including its geometry, length, and number of cutting teeth, is highly dependent on the application. While they are used to cut various materials like cast iron, aluminum, stainless steel, and billet steel, the fundamental design features of the cutter remain consistent. However, the specific geometry of the cutting teeth must be adapted to the material properties. For instance, the way cast iron chips is very different from the way billet steel chips. This affects the number and arrangement of teeth, as well as the width of the cuts, especially when a large amount of material needs to be removed. In some challenging applications, the cutting process may require multiple passes to chip away at the material slowly, preventing the tool from being overloaded.

The style of the blade is largely determined by the bore size. For larger bores, typically 5/8” or more, an insert-style cutter is often used. This design involves a blade that sits within a carrier arm, which is pushed up during the cutting process. A key advantage of this style is that replacement blade inserts are more cost-effective than a complete cutter blade. In contrast, an integral cutter is better suited for smaller bores because it is easier to manufacture and replace, eliminating the hassle of dealing with tiny set screws. Ultimately, the choice between these styles also depends on the operator’s personal preference

When designing IRU cutters for modern CNC machines, especially those that utilize high-pressure coolant, special modifications are necessary. While pressurized coolant aids in chip escapement, it can prevent a standard cutter from lifting correctly during operation. It is vital to note when pressures over 300 PSI will be used to ensure the blade is optimized to function under these conditions.

Another critical design consideration is the amount of material removal. This is particularly challenging in smaller bores (less than 5/8”), regardless of the material. The design of the cutter must provide sufficient clearance for the blades to lift and cut without rubbing against the bore’s edge. This can be addressed through both the cutter design and by running the tool at a slower speed. A slower speed reduces the force on the blade, mitigating the risk of premature breakage or damage to the cutter’s pilot.

As IRU blades are used, predictable wear patterns emerge, providing valuable information for maintenance and planning. The first signs of wear are often seen on the cutter face, where the point flattens and the corners begin to break down, showing small chips and imperfections. Monitoring these wear patterns help to determine the general tool life, allowing operators to ensure they have replacement parts on hand to prevent downtime. This proactive approach is key to maintaining consistent performance and productivity in precision manufacturing.

Ultimately, the design of IRU cutter blades is a complex and nuanced process fundamental to achieving high-quality results in deep bore cutting. Every detail, from the geometry of the cutting teeth to the choice between an integral or insert style, is a strategic decision tailored to the specific application. By carefully considering the material properties, bore size, and the demands of modern machining environments, manufacturers can create blades that not only cut effectively but also maintain their precision and durability. This meticulous approach, combined with a proactive plan to monitor and manage wear, ensures consistent performance and minimizes downtime, proving that a well-designed cutter is the core of a reliable and productive process.
