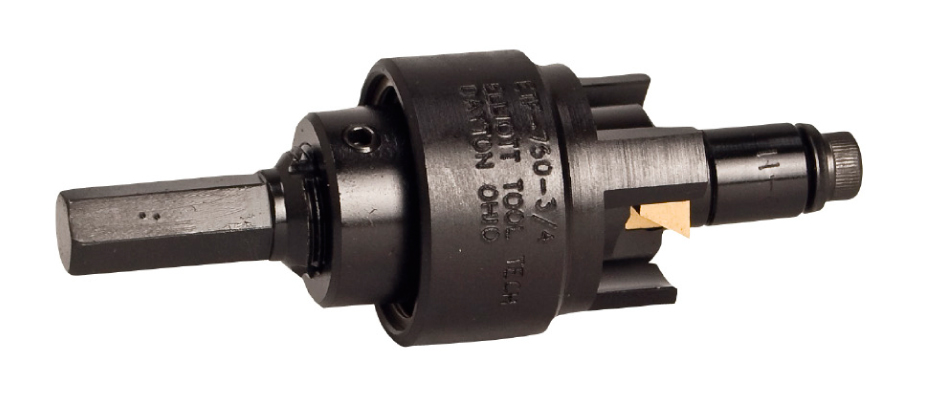

ETF Series

Tube End Facers

Economical & Easy Blade Replacement.

Elliott’s ETF Series Tube End Facers are ideal for trimming heat exchanger, condenser, and chiller tubes to a specific tube projection after tube expansion.

  • Tube Size: 0.375″ to 1.500″ (9.5 – 38.1mm) OD

Two Bit Styles To Achieve Optimum Efficiency.

Tube End Facer blades are available in both non-Ferrous / Steel and Stainless Steel materials, with two cutting edges that are specially coated for increased life.

Economical Solution

Equipped with high alloy facer bits with two cutting edges that are specially coated for increased life, the tube end facer is an economical option.

Hex & Pilots Included

A standard pilot set and a 3/8″ (9.55mm) male hex are included with each Tube Facer.

Adjustable Collar

Each Tube End Facer is equipped with an adjustable collar to allow tubes to be faced flush or to a specified length from the tube sheet.

Drive Motors Available

Elliott’s electric and pneumatic motors are excellent drivers for Tube End Facers.

Pneumatic Motors

23 CFM @ 90 PSI
100 RPM or 325 RPM

Electric Motors

110V or 220V
2 Speed Variable
