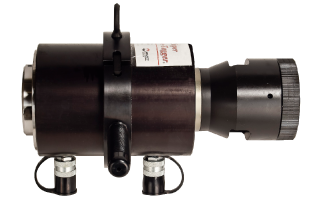

Super Tube Tugger
Continuous Hydraulic Tube Pulling System
Super Tube Tugger Specifications
Tube OD Range
1.500” to 2.000”
(38.1 –50.8mm)
Specifications
Capacity: 60 Ton (54.4mt)
Stroke: 4.000″ (101.0mm)
Tugger Diameter: 8.500″ (215.9mm)
Collapsed Length: 18.000″ (457.0mm)
Extended Length: 22.000″ (559.0mm)
Length Across Handles: 18.250″ (464.0mm)
Weight: 62lbs (28.0kg)
80-40200 Super Tube Tugger Kit
Tube Pulling Hydraulic Cylinder
Suspension Bracket Assembly with Side Handles
Collet Holder Assembly
(2) 15ft. (4.6m) Hydraulic Hose
Release Fork
Nose Piece Adapter
Set of Spanner Wrenches
Spares & Accessories
TCB66-88 Counter Balance
Spears*
Collet Set*
Nose Piece*
Hydraulic Pump (110V, 220V, or Pneumatic)*
* Required to operate the Super Tube Tugger
