Elliptical Deburring

Precision Metal Finishing Tools

Overview      Specifications      Brochure

Elliptical Deburring Specifications

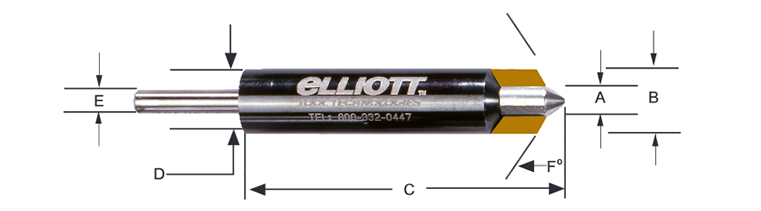

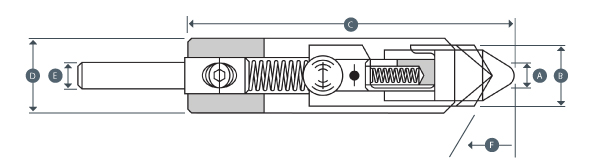

Standard Dimensions

Tool Number Operating Range:
Min (A) – Max (B)
Length
(C)
Body
(D)
Shank
(E)
Degrees
(F)
0430052 5/32″ – 5/16″ 3-1/8″ 5/8″ 1/4″ 120
0435052 1/4″ – 1/2″ 3-1/4″ 3/4″ 1/4″ 120
0440000 3/8″ – 1″ 4-3/4″ 1″ 1/2″ 120

Replacement Parts

Complete Tool Cutter Cutter Spring Pilot Pilot Spring
0430052 0230350 0230601 0231000 0230400
0435052 0230350 0230601 0235300 0230400
0440000 0440250 0440700 044044 0440500

For more information about metal finishing tools visit monaghantooling.com.

Monaghan Tooling Group is Elliott’s exclusive marketing and sales rep for our precision metal finishing tools.
