Back Chamfering Unit

Precision Metal Finishing Tools

Overview      Specifications      Brochure

Chamfers And Deburrs Without Flipping The Part

Measure cycle time in seconds, not minutes, with the Elliott Back Chamfering Unit. Precision back chamfering and deburring of holes from the front face with replaceable cutting blades and simple rapid-feed-retract programming.

  • Hole Diameters: 0.187″ (4.7mm) to 0.787″ (20mm). Other sizes available upon request.

  • Reach: 1” (25.4mm) and 1.77” (45mm). Longer lengths available upon request.

  • Application: Deburring and Chamfering

  • M2 HSS cutters for: Low carbon steel, cast iron, aluminum and other non-ferrous materials.

  • ASP Powder metallurgy HSS cutters for: alloy steels, steels Rc 30-45, stainless steel and exotic materials.

  • Drive Source: CNC Machining Centers, Special Machines, Transfer Machines or Drill Presses

  • CNC machine control for chamfer size.

Back Chamfering

See It In Action!

Eliminates Secondary Set-Ups

Deburring and back chamfering from the front face eliminates part-flipping, secondary set-ups and additional machines.

Machine Precise Back Chamfers

Cutters are mounted within the support pilot – eliminating deflection and chatter – while providing perfectly concentric chamfers.

Economical, Efficient, And Easy-To-Use

Fast Cycle Time

Measured in seconds, not minutes. (Cycle time is typically less than 5 seconds).

Economical Blades

Blades can be re-sharpened 1-2 times and are also replaceable.

Fast & Easy To Use

Easy to use rapid-feed-retract programming.

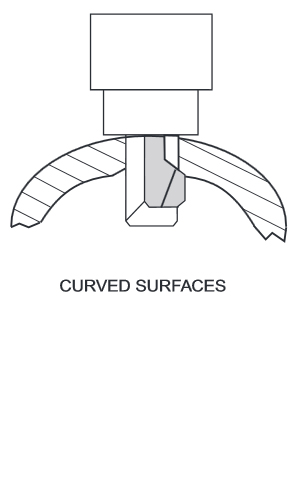

Designs Available For A Wide Range Of Components

Operating Procedure

For more information about metal finishing tools visit monaghantooling.com.

Monaghan Tooling Group is Elliott’s exclusive marketing and sales rep for our precision metal finishing tools.
